Fully Integrated Degradable Bag Manufacturing Line 3 Layer Coextrusion Film Blowing and Bag Sealing Machine
|
Fully Integrated Degradable Bag Manufacturing Line 3 Layer Coextrusion Film Blowing and Bag Sealing Machine
| Luogo di origine | Cina |
| Marca | didaINT |
| Certificazione | ISO9001 |
| Numero di modello | E103103 |
Dettagli del prodotto
Diametro a vite:
45 mm/55 mm/65 mm
Velocità di produzione massima:
120 m/min
Intervallo di larghezza della pellicola:
500-2000 mm
Intervallo di spessore della pellicola:
0,015-0,08 mm
Configurazione dei livelli:
3 strati (A/B/C)
Potenza motore principale:
15-37 CHILOWATT
Evidenziare:
fully integrated degradable bag machine
,3 layer coextrusion film blowing machine
,bag sealing machine with warranty
Termini di trasporto & di pagamento
Quantità di ordine minimo
1
Prezzo
5000-10000USD/Unit
Imballaggi particolari
Cartone
Tempi di consegna
3-7 giorni
Termini di pagamento
T/T, D/P, Western Union
Capacità di alimentazione
10000unit/Month
Descrizione di prodotto

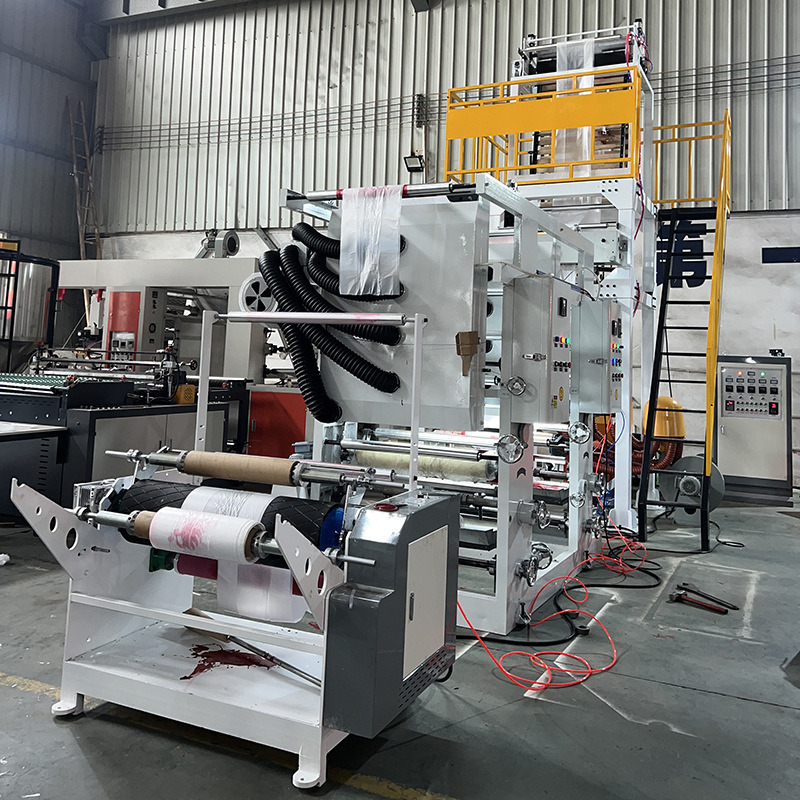

Fully Integrated Degradable Bag Manufacturing Line 3 Layer Coextrusion Film Blowing and Bag Sealing Machine
This 3-layer coextrusion blown film machine is specifically designed for producing high-quality plastic films used in packaging bags, mailer bags, and flat pouches. Ideal for packaging manufacturers, e-commerce logistics suppliers, and agricultural film producers, it enables efficient production of single-layer or multi-layer composite films with excellent sealing and barrier properties.
Features
- 3-layer coextrusion structure allows for material optimization and performance enhancement
- Adjustable film thickness and width for flexible production needs
- Precise temperature control system ensures stable film quality
- Automatic winding device for continuous production
- Suitable for mono-layer or multi-layer film production
Material
- Compatible with PE (including LDPE, LLDPE, HDPE), PP, and other thermoplastic materials
- Supports recycled materials for sustainable production
Specification
| Specification Category | Details |
|---|---|
| Screw Diameter | 45mm / 55mm / 65mm |
| Screw L/D Ratio | 28:1 |
| Max Production Speed | 120 m/min |
| Film Width Range | 500-2000 mm |
| Film Thickness Range | 0.015-0.08 mm |
| Layer Configuration | 3-layer (A/B/C) |
| Main Motor Power | 15-37 kW |
| Heating Power | 40-75 kW |
| Production Capacity | 150-300 kg/h |
| Machine Weight | ~8000 kg |
FAQ
1. What is the advantage of 3-layer coextrusion compared to single-layer film production?
3-layer coextrusion allows for material combination, where each layer can serve different functions - strength, sealing, or barrier properties - resulting in higher quality films with reduced material costs.
2. Can this machine produce biodegradable films?
Yes, the machine can process various biodegradable materials when properly configured, though material compatibility should be verified based on your specific requirements.
3. What types of products can be made with the produced films?
The films are suitable for packaging bags, shopping bags, garment bags, agricultural films, and protective covers.
4. How is the film thickness controlled?
The machine features automatic thickness control system with ultrasonic measurement and automatic die adjustment to ensure consistent film thickness.
5. What support do you provide after purchase?
We offer installation guidance, operational training, technical support, and supply genuine spare parts with responsive after-sales service.
